How To Configure Sensu Monitoring, RabbitMQ, and Redis on Ubuntu 14.04

In order to set up Sensu, you will need:

• One master node Droplet running Ubuntu 14.04. This is the node you will use to view all of the monitoring data.
• At least one additional node that you want to monitor, running Ubuntu 14.04.

Create a sudo user on each Droplet. First, create the user with the adduser command, replacing the username with the name you want to use.

adduser username

This will create the user and the appropriate home directory and group. You will be prompted to set a password for the new user and confirm the password. You will also be prompted to enter the user’s information. Confirm the user information to create the user.

Next, grant the user sudo privileges with the visudo command.

visudo

This will open the /etc/sudoers file. In the User privilege specification section add another line for the created user so it looks like this (with your chosen username instead of username):

# User privilege specification
root ALL=(ALL:ALL) ALL
username ALL=(ALL:ALL) ALL

Save the file and switch to the new user.

su - username

Update the system packages and upgrade them.

sudo apt-get update && sudo apt-get -y upgrade

First, we will set up the Sensu master server. This requires RabbitMQ, Redis, Sensu itself, and the Uchiwa dashboard, along with some supporting software.

Add the RabbitMQ source to the APT source list.

echo "deb http://www.rabbitmq.com/debian/ testing main" | sudo tee -a /etc/apt/sources.list.d/rabbitmq.list

Download and add the signing key for RabbitMQ.

curl -L -o ~/rabbitmq-signing-key-public.asc http://www.rabbitmq.com/rabbitmq-signing-key-public.asc

sudo apt-key add ~/rabbitmq-signing-key-public.asc

Install RabbitMQ and Erlang.

sudo apt-get update && sudo apt-get install -y rabbitmq-server erlang-nox

The RabbitMQ service should start automatically. If it doesn’t, start it with the following command.

sudo service rabbitmq-server start

Sensu uses SSL for secure communication between its components and RabbitMQ. Although it is possible to use Sensu without SSL, it is highly discouraged. To generate certificates, download Sensu’s certificate generator to the /tmp directory and generate the SSL certificates.

cd /tmp && wget http://sensuapp.org/docs/0.13/tools/ssl_certs.tar && tar -xvf ssl_certs.tar

cd ssl_certs && ./ssl_certs.sh generate

Create a RabbitMQ SSL directory and copy over the certificates.

sudo mkdir -p /etc/rabbitmq/ssl && sudo cp /tmp/ssl_certs/sensu_ca/cacert.pem /tmp/ssl_certs/server/cert.pem /tmp/ssl_certs/server/key.pem /etc/rabbitmq/ssl

Create and edit the /etc/rabbitmq/rabbitmq.config file.

sudo vi /etc/rabbitmq/rabbitmq.config

Add the following lines to the file. This configures the RabbitMQ SSL listener to listen on port 5671 and to use the generated certificate authority and server certificate. It will also verify the connection and fail if there is no certificate.

[
    {rabbit, [
    {ssl_listeners, [5671]},
    {ssl_options, [{cacertfile,"/etc/rabbitmq/ssl/cacert.pem"},
                   {certfile,"/etc/rabbitmq/ssl/cert.pem"},
                   {keyfile,"/etc/rabbitmq/ssl/key.pem"},
                   {verify,verify_peer},
                   {fail_if_no_peer_cert,true}]}
  ]}
].

Restart RabbitMQ.

sudo service rabbitmq-server restart

Create a RabbitMQ virtual host and user for Sensu. Change the password (pass). You’ll need this password later when you configure the Sensu server and the clients to be monitored.

sudo rabbitmqctl add_vhost /sensu
sudo rabbitmqctl add_user sensu pass
sudo rabbitmqctl set_permissions -p /sensu sensu ".*" ".*" ".*"

Install Redis.

sudo apt-get -y install redis-server

The Redis service should start automatically. If it doesn’t, start it with the following command. (Note that if Redis is already running you will receive the error: “Starting redis-server: failed.”)

sudo service redis-server start

Add the sources and keys to install Sensu.

wget -q http://repos.sensuapp.org/apt/pubkey.gpg -O- | sudo apt-key add -

echo "deb     http://repos.sensuapp.org/apt sensu main" | sudo tee -a /etc/apt/sources.list.d/sensu.list

Install Sensu and Uchiwa (Uchiwa is the monitoring dashboard).

sudo apt-get update && sudo apt-get install -y sensu uchiwa

Sensu needs the secure connection information to RabbitMQ. Make an SSL directory for Sensu and copy over the generated certs.

sudo mkdir -p /etc/sensu/ssl && sudo cp /tmp/ssl_certs/client/cert.pem /tmp/ssl_certs/client/key.pem /etc/sensu/ssl

Now all of the components for Sensu monitoring are installed.

Now we need to configure Sensu. We’ll create individual configuration files in the /etc/sensu/conf.d folder for easier readability and management. Unless you’ve configured the services and components mentioned in the config files on separate machines, you can leave most sample values shown below unchanged. Alternately, /etc/sensu/config.json.example<^> is another example configuration file you can copy and use to configure Sensu.

Create and edit the rabbitmq.json file.

sudo vi /etc/sensu/conf.d/rabbitmq.json

Add the following lines, which will allow Redis to connect securely to the RabbitMQ instance using your SSL certificate. The user and pass should be the ones you set for the RabbitMQ virtual host.

{
  "rabbitmq": {
    "ssl": {
      "cert_chain_file": "/etc/sensu/ssl/cert.pem",
      "private_key_file": "/etc/sensu/ssl/key.pem"
    },
    "host": "localhost",
    "port": 5671,
    "vhost": "/sensu",
    "user": "sensu",
    "password": "pass"
  }
}

Create and edit the redis.json file.

sudo vi /etc/sensu/conf.d/redis.json

Add the following lines, which include the connection information for Sensu to access the Redis instance.

{
  "redis": {
    "host": "localhost",
    "port": 6379
  }
}

Create and edit the api.json file.

sudo vi /etc/sensu/conf.d/api.json

Add the following lines, which include the connection information for Sensu to access the API service.

{
  "api": {
    "host": "localhost",
    "port": 4567
  }
}

Create and edit the uchiwa.json file.

sudo vi /etc/sensu/conf.d/uchiwa.json

Add the following lines. These include the connection information for the Uchiwa dashboard to access the Sensu API. You can optionally create a username and password in the uchiwa block for dashboard authentication. If you want the dashboard to be publicly accessible, just leave it as is.

{
    "sensu": [
        {
            "name": "Sensu",
            "host": "localhost",
            "ssl": false,
            "port": 4567,
            "path": "",
            "timeout": 5000
        }
    ],
    "uchiwa": {
        "port": 3000,
        "stats": 10,
        "refresh": 10000
    }
}

In this example, we’ll have the Sensu master server monitor itself as a client. So, create and edit the client.json file.

sudo vi /etc/sensu/conf.d/client.json

Add the following lines and edit the name value for the Sensu client. This is the name for the server that you will see in the Uchiwa dashboard. The name cannot have spaces or special characters.

You can leave the address value as localhost since we are monitoring this server. We will be creating a similar file again later for every client host to be monitored.

{
  "client": {
    "name": "server",
    "address": "localhost",
    "subscriptions": [ "ALL" ]
  }
}

Enable the Sensu services to start automatically.

sudo update-rc.d sensu-server defaults
sudo update-rc.d sensu-client defaults
sudo update-rc.d sensu-api defaults
sudo update-rc.d uchiwa defaults

Start the Sensu services.

sudo service sensu-server start
sudo service sensu-client start
sudo service sensu-api start
sudo service uchiwa start

At this point, you can access Sensu at http://ip-address:3000.

You will need to install Sensu on every client machine to be monitored.

While still on the Sensu master server, copy the SSL certificates to the client server’s /tmp folder using SCP. Replace user and IP below with the sudo user and IP address of the client server.

scp /tmp/ssl_certs/client/cert.pem /tmp/ssl_certs/client/key.pem user@ip:/tmp

On the client to be monitored, add the Sensu key and source.

wget -q http://repos.sensuapp.org/apt/pubkey.gpg -O- | sudo apt-key add -
echo "deb     http://repos.sensuapp.org/apt sensu main" | sudo tee -a /etc/apt/sources.list.d/sensu.list

Install Sensu.

sudo apt-get update && sudo apt-get -y install sensu

You need to provide the client with connection information to RabbitMQ. Make an SSL directory for Sensu and copy the certificates in the /tmp folder that were copied from the Sensu master server.

sudo mkdir -p /etc/sensu/ssl && sudo cp /tmp/cert.pem /tmp/key.pem /etc/sensu/ssl

Create and edit the rabbitmq.json file.

sudo vi /etc/sensu/conf.d/rabbitmq.json

Add the following lines. Edit the host value to use the IP address of the RabbitMQ server; that is, the IP address of the Sensu master server. The user and password values should be the ones you set for the RabbitMQ virtual host on the Sensu master server.

{
  "rabbitmq": {
    "ssl": {
      "cert_chain_file": "/etc/sensu/ssl/cert.pem",
      "private_key_file": "/etc/sensu/ssl/key.pem"
    },
    "host": "1.1.1.1",
    "port": 5671,
    "vhost": "/sensu",
    "user": "sensu",
    "password": "pass"
  }
}

Provide configuration information for this Sensu server by creating and editing the client.json file.

sudo vi /etc/sensu/conf.d/client.json

Add the following lines. You should edit the name value to what you want this server to be called in the Uchiwa dashboard. The name cannot have spaces or special characters.

You can leave the address value set to localhost, since we are monitoring this Sensu client server.

{
  "client": {
    "name": "client1",
    "address": "localhost",
    "subscriptions": [ "ALL" ]
  }
}

Enable and start the client.

sudo update-rc.d sensu-client defaults

sudo service sensu-client start

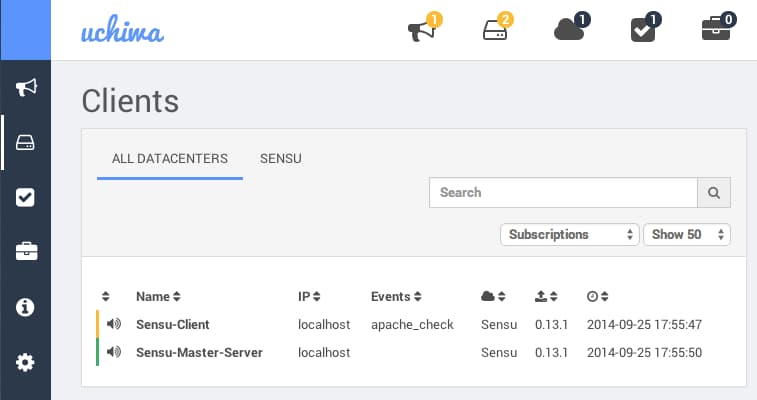

You should now see the client on the Clients tab on the Sensu Dashboard.

Now that Sensu is running we need to add a check on both servers. We’re going to create a Ruby script that will check if Apache is running.

If you don’t have Apache installed, install it now on both the Sensu master server and the Sensu client server.

sudo apt-get install -y apache2

Apache should be running by default on both servers.

Before installing the sensu-plugin gem, make sure you have all the required libraries. Install the Ruby libraries and the build-essential library on both the Sensu master server and the Sensu client server.

sudo apt-get install -y ruby ruby-dev build-essential

Install the sensu-plugin gem on both the Sensu master server and the Sensu client server.

sudo gem install sensu-plugin

Create a check-apache.rb file in the Sensu plugins folder and modify the file permissions on both the Sensu master server and the Sensu client server.

sudo touch /etc/sensu/plugins/check-apache.rb && sudo chmod 755 /etc/sensu/plugins/check-apache.rb

Edit the check-apache.rb file on both the Sensu master server and the Sensu client server.

sudo vi /etc/sensu/plugins/check-apache.rb

Add the following lines, which script the process of checking Apache.

#!/usr/bin/env ruby

procs = `ps aux`
running = false
procs.each_line do |proc|
  running = true if proc.include?('apache2')
end
if running
  puts 'OK - Apache daemon is running'
  exit 0
else
  puts 'WARNING - Apache daemon is NOT running'
  exit 1
end

Create and edit the check_apache.json file on only the Sensu master server.

sudo vi /etc/sensu/conf.d/check_apache.json

Add the following lines that will run the script to check Apache every 60 seconds.

{
  "checks": {
    "apache_check": {
      "command": "/etc/sensu/plugins/check-apache.rb",
      "interval": 60,
      "subscribers": [ "ALL" ]
    }
  }
}

Restart the Sensu server and API on the Sensu master server.

sudo service sensu-server restart && sudo service sensu-api restart

Restart the Sensu client on the Sensu client server.

sudo service sensu-client restart

After a few minutes, you should see the check appear on the “Checks” tab in the Sensu Dashboard.

Stop the Apache service on either server to test that the script is working.

sudo service apache2 stop

An alert should show up on the Events dashboard after a few minutes. Click on the alert to view more information and to take action such as silencing or resolving it.

In this image, Apache has been stopped on the client server. This is the Clients page.

Start the Apache service to stop the warnings.

sudo service apache2 start

Handlers can send notification emails or send data to other applications like Graphite based on events. Here, we will create a handler that sends an email if the Apache check fails. Please note that your server needs to be configured to send email. You can use this Postfix Tutorial to set up a simple mail server. (You may want to have mail sent to a user on the Sensu master server for the easiest configuration.)

On the Sensu master server, create and edit the handler_email.json file.

sudo vi /etc/sensu/conf.d/handler_email.json

Add the following lines, replacing email@address.com with the email address where you want to receive notifications. Depending on your mail server setup, it may be easiest to set this to an alias for a user on the Sensu master server. This handler is called “email” and will use the mail utility to send an alert email with the subject “sensu event” to the specified email address.

{
  "handlers": {
    "email": {
      "type": "pipe",
      "command": "mail -s 'sensu event' email@address.com"
    }
  }
}

Edit the check_apache.json.

sudo vi /etc/sensu/conf.d/check_apache.json

Add the new handlers line with the email handler in the apache_check block.

{
  "checks": {
    "apache_check": {
      "command": "/etc/sensu/plugins/check-apache.rb",
      "interval": 60,
      "handlers": ["default", "email"],
      "subscribers": [ "ALL" ]
    }
  }
}

Restart sensu-api and sensu-server.

sudo service sensu-api restart && sudo service sensu-server restart

Stop the Apache service again to test the email alert. You should get one every 60 seconds.

sudo service apache2 stop

Your email should look somewhat like the following:

Return-Path: <sensu@sensu-master>
...
Subject: sensu event
To: <alerts@sensu-master.com>
...
From: sensu@sensu-master (Sensu Monitoring Framework)

{"id":"481c85c4-485d-4f25-b835-cea5aef02c69","client":{"name":"Sensu-Master-Server","address":"localhost","subscriptions":["ALL"],"version":"0.13.1","timestamp":1411681990},"check":{"command":"/etc/sensu/plugins/check-apache.rb","interval":60,"handlers":["default","email"],"subscribers":["ALL"],"name":"apache_check","issued":1411682001,"executed":1411682001,"duration":0.023,"output":"WARNING - Apache daemon is NOT running\n","status":1,"history":["0","0","0","0","0","0","0","0","0","0","0","0","0","0","0","0","0","0","0","0","1"]},"occurrences":1,"action":"create"}

Start the Apache service again to stop receiving email alerts.

sudo service apache2 start

Sensu is a versatile monitoring tool with its plugins and the custom scripts you can write for it. You can also create handlers to do almost anything with the data. Keep exploring to get it just right for you.
